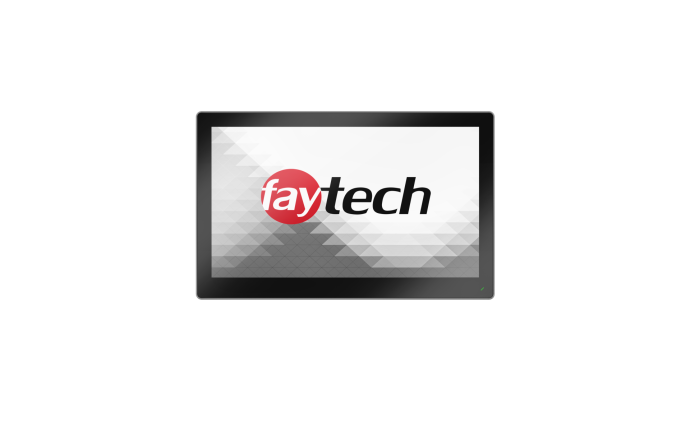

15.6” Capacitive Touch Monitor – FT156TMACAPOB

Artikelnummer: FT156TMACAPOB
EAN: 6920734002603



Kenmerken:

  • 15.6” Capacitive Touch Monitor met 10-punts multitouch

  • Optisch gebonden scherm – minimale reflectie, maximale helderheid

  • 1.1mm krasbestendig glas (7H hardheid)

  • Aluminium frame – stijlvol en robuust

  • Geïntegreerde speakers (2x2W)

  • 2 jaar garantie bij 24/7 gebruik

Datasheet

3 - 5 werkdagen

De faytech® FT156TMACAPOB is een krachtige en compacte 15.6 inch capacitive touch monitor, ontworpen voor professioneel gebruik in veeleisende omgevingen. De monitor heeft een modern aluminium frame dat zorgt voor een strakke uitstraling en stevige bescherming.

Dankzij het 10-punts capacitieve touchscreen, dat optisch gebonden is aan het LCD-paneel, biedt het scherm een uitstekende helderheid zonder hinderlijke reflecties. Het voorpaneel bestaat uit 1.1mm dik glas met 7H hardheid, voor extra krasbestendigheid.

De monitor is uitgerust met ingebouwde stereo speakers (2x2W) en is geschikt voor 24/7 gebruik – ideaal voor HMI, kiosken, digital signage en industriële automatisering.

Kenmerken:

  • 15.6” Capacitive Touch Monitor met 10-punts multitouch

  • Optisch gebonden scherm – minimale reflectie, maximale helderheid

  • 1.1mm krasbestendig glas (7H hardheid)

  • Aluminium frame – stijlvol en robuust

  • Geïntegreerde speakers (2x2W)

  • 2 jaar garantie bij 24/7 gebruik

Artikelnummer: FT156TMACAPOB
EAN: 6920734002603

Algemeen

SKU
4010078957
Productcode
FT156TMACAPOB
Levertijd
3 - 5 werkdagen
Manufacturer
faytech
Art Grp
MO

Labels

New Label
New

Product informatie

Productnaam
15.6" Capacitive Touch Monitor (Alu Frame) | FT156TMACAPOB
EAN nummer
6920734002603
Kleur
Zwart

Display

Display size
15,6" / 39.6 cm
Beeldscherm ratio
16:9
Resolutie
1920 x 1080
Active Area [mm]
162.05 × 121.54
Helderheid (cd/m²)
220 cd/m₂
Contrast Ratio
800:1
LED life time [h]
15000
Viewing Angle [°]
170 / 170
Display interface
eDP

PC/Monitor system

Monitor Controller
Realtek® RTD2556T
Monitor Firmware
Standard
Loudspeaker
2× 2W
HDMI
1
DP
1
VGA
1
Audio In
1
USB-B (touch)
1
Serial Port RS232 (RX / TX only)
1
OSD Buttons
Power On/Of, Decrease Brightness/Left/ Down, Increase Brightness/Right/Up, Menu/ Enter, Input Selection
Adjustable Features
Brightness, Contrast, Screen Setting, Color Temp, Color Effect, Language, Reset, Auto Adjust

Touch panel

Touch Type
Projected Capacitive 10-point Multi-touch
Printing type touch panel
Organic
Cover Glass Surface Treatment
AG
IK Protection
IK07
Printing Color
RAL9004 (Black)
strengthening
Thermally Strengthened
Touch controller
EXC81W84
Touch Interface
USB
Touch Resolution RX
53
Touch Resolution TX
30
Optical Bonding
Clear Bond®

Environmental conditions

operation temperature
-10°C to 60°C
Storage Temperature
-20°C to 60°C
Humidity Range (RH)
10% to 90%

Certifications

CE certificatie
yes
FCC Certificatie
yes

Chassis

Case Design
Aluminium frame
Case size
Small
IP Protection
IP65 Front / IP40 Back
Case Color
RAL9004 (Black)
Case Coating
Powder Coating
201.0 × 160.5 × 40.7
386.3 × 243.8 × 40.5
Cut-out for clamp supports L × H [mm]
231.0 × 190.0
Max. wall thickness for clamp supports [mm]
5.0
Amount of clamps required
4
Mounting
VESA 100 × 100

Accessories

USB-Touch Cable
YesYes
Short instruction manual
Yes

Power

Power Indicator
Green LED
Voltage (V)
12V
Power Consumption
9W
Stand-By Consumption (W)
<1W

Weight and Packaging

Net weight
~3.50 kg est.
Gross Weight
~5.40 kg est. (incl. Cartonage)
Packaging Material
100% recyclable cardboard and polyethylene (PE)
Packaging Size L × W × H [mm]
545.0 × 410.0 × 80.0

Included in the delivery

Inclusief in the delivery
Power Supply, USB touch kabel , Short Installation Manual
