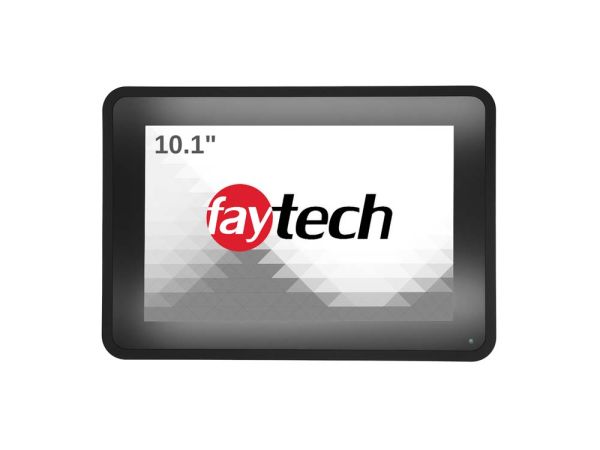

FT101N4200CAPOB 10,1" capacitive touch computer N4200

10,1" capacitive touch computer N4200

Beeldschermverhouding 16:10
Contrast 800:1
Resolutie 1280x800
Multi touch panel
Intel® Pentium® QuadCore N4200 CPU
Wifi
4GByte (max 8GB) RAM, 128GByte SSD
Voedingsspanning 100-240V.

3D-model | datasheet

3 - 5 werkdagen

Details

10",1 capacitive touch computer

faytech 10 inch innovatieve all-in-one multi-touch computer heeft een modern design. Met een beeldschermverhouding 16:10 contrast 800:1; resolutie 1024x600, multi-touch panel, Intel® Pentium™ QuadCore processor N4200 CPU, Wifi, 4GByte (max 8) RAM, 128GByte SSD, voedingsspanning 100-240V.

Deze 10,1 inch capacitive touch computer wordt geleverd met:

netadapter
W-LAN antenna
beknopte instructie
2 jaar garantie

Datasheet | 3D model

Product Specificaties

Product Details

SKU: 1010502371
Productcode: FT101N4200CAPOB
Levertijd: 3 - 5 werkdagen
Manufacturer: faytech
Art Grp: PC

Product details touch computer

Productnaam: 10,1" Capacitive Touch PC (N4200)
EAN nummer: 6920734010172

PC Systeem

Processor: Intel® Pentium® QuadCore N4200
Graphic GPU: Intel® HD Graphics
Audio Codec: Realtek ALC3251 Audio CODEC
Geheugen: 4GB DDR3L non-ECC (max. 8GB)
Harddrive: faytech Industrial 128GB SSD
Netwerk / Network: 2x Realtek PCIe GB LAN 8111G (1x optional with POE); W-LAN
Driver support: Windows 10 , Linux , Windows 11
Pre installed OS: Linux Ubuntu

IP Rating

IP beschermklasse: IP65 Front / IP40 Back

LCD Panel

Display size: 10.1" / 25.65 cm
Beeldscherm ratio: 16:10
Resolutie: 1280 x 800
Helderheid (cd/m²): 350 cd/m₂
Contrast Ratio: 800:1
Kijkhoek horizontaal / verticaal (°): 170/170 (°)
Backlight / Backlight lifetime: LED / 20,000

Touch panel

Touch type: Capacitive multi-touch
Touch interface: USB
Levensduur touch (contacten): Unlimited
Oppervlakte hardheid: 7H

Operation / Mechnical

Bedrijfstemperatuur: -10 ~ +60 (°C)
Humidity Range (RH): 10% to 90%
Case material: Aluminum
Behuizing L x B x H: 278.0 × 203.6 × 49.3mm
Aantal klemmen nodig: 4
Mounting: VESA 100 × 100

Power

Voedingsspanning: 100-240V ACDC active switching; 12V DC-Out
Voltage (V): 12V
Stand-By Consumption (W): <1W

External connectors

Externe connectoren: 12V DC-In, HDMI, DisplayPort, USB 3.0 ports, USB 2.0 ports, MIC-In & EAR-Out, COM – RS 232/422/485 switchable; 5V/12V/RI option (COM1, DSUB9), COM – RS 232; RX/TX (COM2, DSUB9), COM – RS 232 & 485; RX/TX & A+/B- (COM3&4, RJ12), 10/100/1000Mbit RJ45 Ports, 2.5" module slot, changeable SSD included, W-LAN antenna connector (RP-SMA male)

Expansion slots

Uitbreiding slot: mSATA full size (occupied by SSD), M.2 E-Key Slot (occupied by Wifi card), SATA connector, External PCIe x1 Straddle connector

Inclusief bij levering

Inclusief in the delivery: Power Supply, Short Installation Manual, faytech steun , W-LAN antenna (RP-SMA female)
