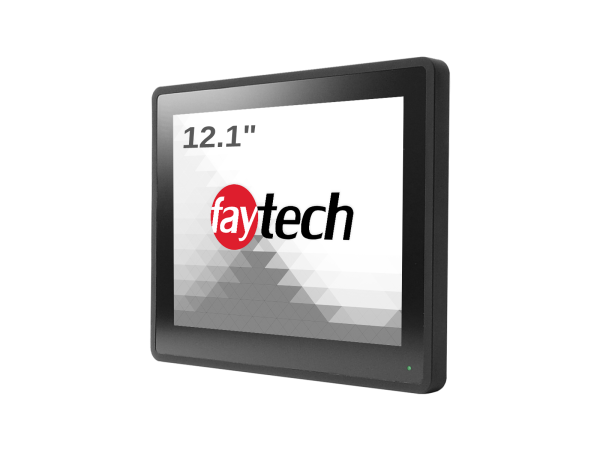

FT121TMBCAPOB 12,1" capacitive touch monitor


FT121TMBCAPOB
  • Screen ratio 4:3
  • Contrast 700:1
  • Resolution 1024x768
  • IP65 frontal protection
  • Anti-glare surface treatment (chemical etching)
  • Multi- touch, Capacitive touch technology
  • 1.1mm cover glass with 7H surface hardness
  • Optically bonded touch screen to LCD panel
  • Rubber IP65 front with silicone seal
  • Integrated audio speakers (2x2w)
  • 2 years guarantee (24/7 operation)
Direct beschikbaar

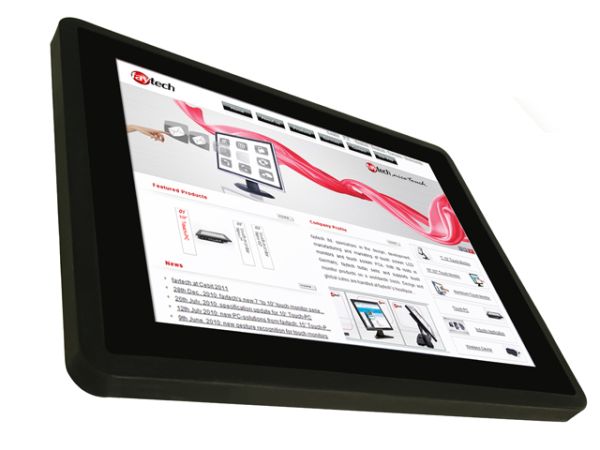

faytech 12,1 inch capacitive (multi-touch)  touch monitor has an modern and sleek look. This 12.1-inch touch monitor has a widescreen display, 1024x768 resolution and 500 Nits brightness. The front of the 12.1-inch monitor is waterproof with an IP65 protection rating. This touch monitor comes with multi-touch (capacitive) technology and is a robust solution.



Included at the delivery:

  • 12,1 inch touch monitor FT121TMBCAPOB
  • Netadapter 12V
  • Cables - VGA, USB touch, audio cable
  • 2 years guarantee

8" capacitive touch monitor faytech | FT08TMB

Algemeen

SKU
1010502068
Productcode
FT121TMBCAPOB
Levertijd
Direct beschikbaar

Product informatie

Productnaam
12,1" capacitive touch monitor (OB)
EAN nummer
6920734000371
IP beschermklasse
IP65 Front / IP40 Back

LCD Panel

Display formaat
12,1"
Screen diagonal (Inch/cm)
12,1" / 30.73 cm
Actief scherm formaat (cm)
12.1 inch / 30.7 cm
Beeldscherm ratio
4:3
Resolutie
1024 x 768
Helderheid (cd/m²)
500 cd/m₂
Contrast
700:1
Kijkhoek horizontaal / verticaal (°)
160/160
Backlight / Backlight lifetime
LED / 50,000

Touch panel

Touch type
Capacitive multi-touch
Touch panel drivers
Windows , Linux, Mac, Android
Levensduur touch (contacten)
Unlimited
Oppervlakte hardheid
7H

Operation / mechanisch

Bedrijfstemperatuur
-20 ~+70 (°C)
Relatieve luchtvochtigheid
10%-90%
Netto gewicht (kg)
1.20
Bruto gewicht (incl verpakking) (kg)
2.20 inclusief verpakking) (kg)
Materiaal behuizing
Rubber frame, aluminium back case
Behuizing L x B x H
301.0 × 246.0 × 42.5 mm
Bevestiging
VESA 100 x 100

Power

Voedingsspanning
100-240V ACDC active switching; 12V DC-Out
Voltage (V)
12
Energie verbruik (W)
12 W
Stand-By Consumption (W)
1

Externe connectoren

Video
HDMI, VGA, HDMI 1.3 (incl. HDCP)
Audio
PC-Audio
Touch interface
USB
Externe connectoren
12V DC-In, DVI-D

Included in the delivery

Inclusief in the delivery
Power Supply, VGA kabel, USB touch kabel , Audio kabel, Short Installation Manual, faytech steun
