21,5" alu frame capacitive touch PC (Intel) | FT215BX6413EACAPOB
Belangrijkste kenmerken
- 21.5" Capacitive Touch PC
- Intel Atom® x6413E (Elkhart Lake) processor
- 10-punts capacitieve multitouch
- 3,0 mm coverglas
- Optisch gebonden touchscreen
- Hoogwaardig aluminium frame
- Ventilatorloos ontwerp
- Geïntegreerde stereoluidsprekers (2 x 2W)
- Geschikt voor 24/7 gebruik
- 2 jaar garantie

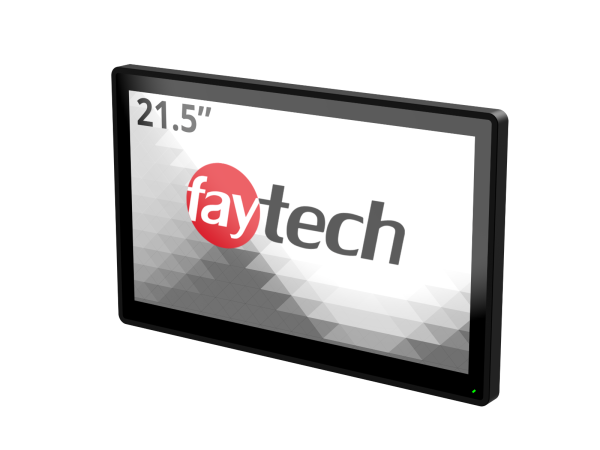

faytech® 21.5" Aluminium Capacitive Touch PC (Intel x6413E) – FT215BX6413EACAPOB
Producer-No.: FT215BX6413EACAPOB
EAN: 6920734003464
De faytech® FT215BX6413EACAPOB is een krachtige 21.5 inch Capacitive Touch PC met een modern aluminium frame, ontworpen voor betrouwbare 24/7 inzet binnen industriële automatisering, machinebesturing, kiosksystemen, retail en digital signage.
Deze Touch PC is uitgerust met de energiezuinige Intel Atom® x6413E (Elkhart Lake) processor, die uitstekende prestaties levert voor industriële HMI-toepassingen, bedieningspanelen en interactieve systemen. Dankzij het ventilatorloze ontwerp werkt het systeem stil en betrouwbaar, zelfs in veeleisende omgevingen.
Het hoogwaardige 10-punts capacitieve multitouch scherm zorgt voor een snelle, nauwkeurige en intuïtieve bediening. Dankzij het optisch gebonden touchscreen worden helderheid, contrast en beeldkwaliteit verbeterd, terwijl reflecties aanzienlijk worden verminderd.
Het stevige 3,0 mm coverglas biedt optimale bescherming tegen intensief dagelijks gebruik. Het hoogwaardige aluminium frame geeft de Touch PC een moderne uitstraling en maakt hem geschikt voor zowel industriële als commerciële toepassingen.
Met de geïntegreerde stereoluidsprekers (2 x 2W) is deze Touch PC tevens geschikt voor multimedia- en interactieve toepassingen.
Belangrijkste kenmerken
- 21.5" Capacitive Touch PC
- Intel Atom® x6413E (Elkhart Lake) processor
- 10-punts capacitieve multitouch
- 3,0 mm coverglas
- Optisch gebonden touchscreen
- Hoogwaardig aluminium frame
- Ventilatorloos ontwerp
- Geïntegreerde stereoluidsprekers (2 x 2W)
- Geschikt voor 24/7 gebruik
- 2 jaar garantie
Toepassingen
Ideaal voor industriële automatisering, HMI-systemen, machinebesturing, kiosksystemen, retail, digital signage, informatiezuilen, toegangscontrole en andere professionele toepassingen waar betrouwbaarheid en een hoogwaardige afwerking belangrijk zijn.
Product Details
- SKU
- 4010081723
- Levertijd
- 2 - 3 weken levertijd
- Manufacturer
- faytech
- Art Grp
- PC
Product details touch computer
- Productnaam
- 21.5" Aluminium Capacitive Touch PC (Intel x6413E)
- Productcode
- FT215BX6413EACAPOB
- EAN nummer
- 6920734003464
Display
- Display size
- 21,5" / 54.69 cm
- Beeldscherm ratio
- 16:9
- Resolutie
- 1920 x 1080
- Helderheid (cd/m²)
- 250 cd/m₂
- Contrast Ratio
- 1000:1
- Backlight / Backlight lifetime
- 30.000 h
- Kijkhoek horizontaal / verticaal (°)
- 178 / 178
- Display interface
- LVDS
PC X6413E
- Processor
- Intel Atom® x6413E (Elkhart Lake)
- Pre installed OS
- Debian 12
- OS Available on Request (additional fee)
- Linux Ubuntu 22.4, Windows 10 & 11
- RAM Size
- 8 GB DDR4
- SSD Size
- 120 GB
- Loudspeaker
- 2× 2W
- Wifi
- Intel® AC 3168
- HDMI
- 1
- DP
- 1
- Audio In / Out
- 1 (Realtek® ALC897 Audio CODEC)
- USB 2.0
- 2
- USB 3.0
- 2
- Ethernet Network (10/100/1000 Mbit/s)
- 2 Realtek® 8111H (LAN 1 PoE option, LAN 2)
- Serial Port RS232 (RX / TX only)
- 2
- SD Card Slot
- 1
- SIM Card Slot
- 1
Touch Panel
- Touch Type
- Projected Capacitive 10-point Multi-touch
- Printing type touch panel
- Organic
- Cover Glass Surface Treatment
- AG
- IK Protection
- IK08
- Printing Color
- RAL9004 (Black)
- strengthening
- Thermally Strengthened
- Touch controller
- EXC81W84
- Touch Interface
- USB
- Touch Resolution RX
- 74
- Touch Resolution TX
- 42
- Optical Bonding
- Clear Bond®
Environmental conditions
- operation temperature
- -10°C to 60°C
- Storage Temperature
- -20°C to 60°C
- Humidity Range (RH)
- 10% to 90%
Certifications
- CE certificatie
- yes
- FCC Certificatie
- yes
Chassis
- Case Design
- Rubber Frame Sealing
- Case size
- Large
- IP Protection
- IP65 Front / IP40 Back
- Case Color
- RAL9004 (Black)
- Case Coating
- Powder Coating
- Materiaal buitenkant
- Aluminium
- 201.0 × 160.5 × 40.7
- 532.0 × 331.0 × 56.0
- Cut-out for clamp supports L × H [mm]
- 508.0 × 307.0
- Max. wall thickness for clamp supports [mm]
- 5.0
- Amount of clamps required
- 6
- Mounting
- VESA 100 × 100
Power
- Power Indicator
- Green LED
- Voltage (V)
- 9-36V
- Power Consumption
- 27.5W
- Stand-By Consumption (W)
- 1W
Accessories PC X6413E
- Voedingsspanning
- 100-240V ACDC active switching; 12V DC-Out
- Wifi Antenna
- RP-SMA female
- Short instruction manual
- Yes
Weight and packaging
- Net weight
- 5.80 kg est.
- Gross Weight
- 8.50 kg est. (incl. Cartonage)
- Packaging Material
- 100% recyclable cardboard and polyethylene (PE)
- Packaging Size L × W × H [mm]
- 685.0 × 410.0 × 80.0
