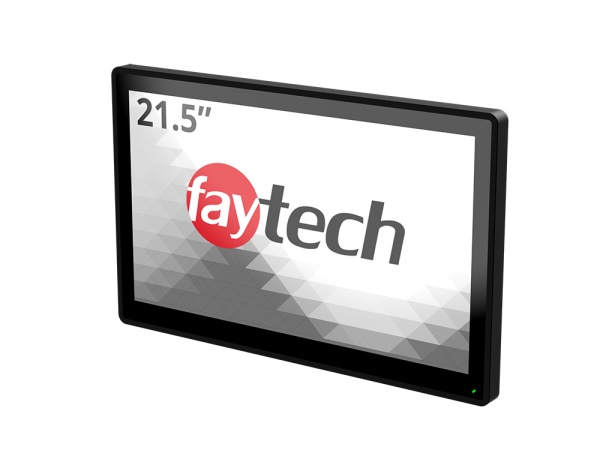

21,5" Capacitive Touch PC (i5-1145G7E)

21,5" Capacitive Touch PC (i5-1145G7E)

FT215BI5CAPOB | 1010502669 | EAN: 6920734000876
  • Intel Core™ i5-1145G7E  QuadCore CPU
  • 8GB RAM memory, 240GB Industrial SSD
  • Supports Debian 12, Win 10 & 11, Linux (32Bit, 64Bit)
  • Anti-glare surface treatment (chemical etching)
  • 10-Finger-Multi Touch Capacitive Touch Panel
  • 1.1mm cover glass with 7H surface hardness
  • Optically bonded Touch Panel to LCD Panel
  • Patented IP65 front with silicon seal
  • Integrated W-LAN
  • 2 year guarantee

Datasheet



3 - 5 werkdagen

21,5″ Capacitive Touch PC (i5-1145G7E)

FT215I5CAPOB

De Intel Core i5-1145G7E is een processor uit de Tiger Lake-generatie, die bekend staat om zijn krachtige prestaties en energie-efficiëntie. Dit kenmerkt deze processor voor industriële toepassingen.

Architectuur: De i5-1145G7E maakt gebruik van de Willow Cove-architectuur, die deel uitmaakt van de Tiger Lake-familie. Deze architectuur biedt verbeteringen in prestaties en efficiëntie ten opzichte van eerdere generaties.

Aantal kernen/threads: Deze processor heeft vier kernen en ondersteunt acht threads. Hierdoor kan de processor efficiënt multitasken en taken parallel verwerken.

Grafische prestaties: De "G7" in de naam duidt op de geïntegreerde Intel Iris Xe Graphics met zeven grafische uitvoereenheden. Dit zorgt voor solide grafische prestaties, wat handig is voor taken zoals beeldbewerking en lichte gaming.

Energie-efficiëntie: De "E" in de naam suggereert dat dit een energiezuinige variant is, wat betekent dat het ontworpen is om goede prestaties te leveren bij een laag stroomverbruik.

Connectiviteit: Processoren zoals de i5-1145G7E ondersteunen moderne connectiviteitsopties, waaronder USB Type-C, PCIe en snelle geïntegreerde Wi-Fi, wat handig kan zijn voor industriële toepassingen die moderne communicatiestandaarden vereisen.

Kortom, de Intel Core i5-1145G7E is een krachtige, energiezuinige processor die geschikt is voor een breed scala aan toepassingen, van kantoortaken, industriële toepassingen tot lichte gaming.



Algemeen

SKU
FT215BI5CAPOB
Levertijd
3 - 5 werkdagen

Labels

New Label
Nieuw

Product details touch computer

Productnaam
21,5" Capacitive Touch PC (i5-1145G7E)
Productcode
FT215BI5CAPOB | 1010502670 |
EAN nummer
6920734000883

Weergave

Display formaat
21,5"
Screen diagonal (Inch/cm)
21,5" / 54.69 cm
Beeldscherm ratio
16:9
Resolutie
1920 x 1080
Actief scherm formaat (cm)
476.06 × 267.79 mm
Helderheid (cd/m²)
250 cd/m₂
Contrast
1000:1
Backlight / Backlight lifetime
30000
Kijkhoek horizontaal / verticaal (°)
178 / 178
Display interface
LVDS

PC System

Processor
Intel Atom® Core™ i5-1145G7E (Tiger Lake U)
Pre installed OS
Debian 12
OS Available on Request (additional fee)
Linux Ubuntu 22.4, Windows 10 & 11
RAM Size
8 GB DDR 4
SSD Size
240 GB
Loudspeaker
2x 2W
Wifi
Intel® AC 3168
HDMI
1
DP
1
Audio In / Out
1 , (Realtek® ALC897 Audio CODEC)
USB 2.0
2
USB 3.0
2
Ethernet Network (10/100/1000 Mbit/s)
2 (1 PoE, Realtek® 8111H)
Serial Port RS232 (RX / TX only)
2
SD Card Slot
1
SIM Card Slot
1

Touch panel

Touch type
Projected Capacitive 10-point Multi-touch
Printing type touch panel
Organic
Cover Glass Surface Treatment
AG (chemical etching)
IK Protection
IK08
Printing Color
RAL9004 (Black)
strengthening
Thermally Strengthened
Touch controller
EXC81W84
Touch Interface
USB
Touch Resolution RX
74
Touch Resolution TX
42
Optical Bonding
Clear Bond®

Environmental conditions

Bedrijfstemperatuur
-10 ~ +60 (°C)
Storage Temperature
-20°C to 60°C
Relatieve luchtvochtigheid
10%-90%

Certifictions

Certifications
CE Certificate, FCC Certificate

Chassis

Case Design
Rubber Frame Sealing
Case size
Large
IP beschermklasse
IP65 Front / IP40 Back
Case Color
RAL9004 (Black)
Case Coating
Powder Coating
Materiaal behuizing
Aluminum
Behuizing L x B x H
532.0 × 331.0 × 56.0 mm
Uitsparing voor klemsteunen Lx H
508.0 × 307.0 mm
Max. wanddikte voor klemsteunen (mm)
5.0 mm
Aantal klemmen nodig
6
Bevestiging
VESA 100 x 100

Power PC i5-1145G7E

Power Indicator
Green LED
Voltage (V)
9~36
Energie verbruik (W)
33.5W
Stand-By Consumption (W)
<1

Accessories PC i5-1145G7E

Voedingsspanning
100-240V ACDC active switching; 12V DC-Out
Wifi Antenna
RP-SMA female
Short instruction manual
Yes

Weight and packaging

Netto gewicht (kg)
~5.80 kg
Bruto gewicht (incl verpakking) (kg)
~8.50 kg (incl. Cartonage)
Packaging Material
100% recyclable cardboard andpolyethylene (PE)
Packaging size L x W x H
685.0 × 410.0 × 80.0 mm
