24-inch capacitieve geïntegreerde touch-pc (ARM V40)

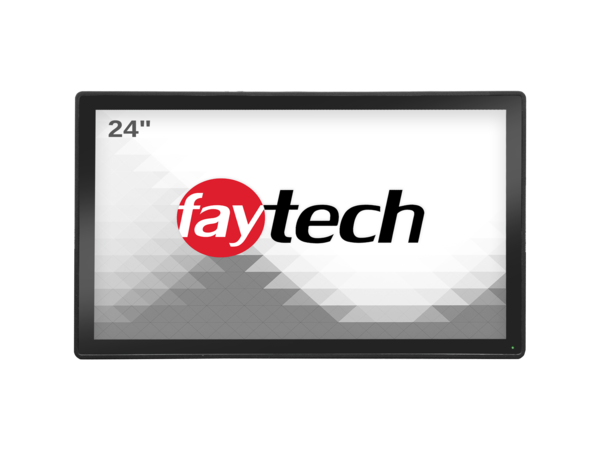

24" Capacitive Embedded Touch PC (ARM V40)

  • Allwinner® V40 Cortex™ A7 QuadCore Processor
  • 2 GB RAM-geheugen en 8 GB FLASH-opslag
  • Antireflecterende oppervlaktebehandeling (chemical etching)
  • Voorgeïnstalleerd Android 6 besturingssysteem
  • 1,1 mm afdekglas met een oppervlaktehardheid van 7H
  • Optisch gebonden aanraakpaneel op LCD-paneel
  • Gepatenteerd IP65 front met siliconenafdichting
  • Geïntegreerde W-LAN-module
  • 2 jaar garantie (24/7 werking)
Direct beschikbaar

Algemeen

SKU
1010502022
Levertijd
Direct beschikbaar

Product details touch computer

Productnaam
24" Capacitive Embedded Touch PC (ARM V40)
Productcode / EAN number
24" Capacitive Embedded Touch PC
EAN nummer
6920734000326

PC Systeem

CPU
Allwinner® V40 QuadCore
Chipset
Cortex™ A7
Graphic GPU
ARM® Mali400 Mp2 Complies with OpenGL ES 2.0/1.1
Audio Codec
Integrated HI-FI 100dB Audio Codec Dual analog mic, 2x6W amplifier
Geheugen
2GByte DDR3
Harddrive
8GB EMMC Flash
Netwerk / Network
10/100Mbits Network; W-LAN
Pre installed OS
Android 6

IP Rating

IP beschermklasse
IP65 Front / IP65 back

LCD Panel

Actief scherm formaat (cm)
1920x1080
Screen diagonal (Inch/cm)
24" / 60.97 cm
Display formaat
24"
Beeldscherm ratio
16:9
Resolutie
1920 x 1080
Helderheid (cd/m²)
500 cd/m₂
Contrast
1000:1
Kijkhoek horizontaal / verticaal (°)
170/160
Backlight / Backlight lifetime
20.000

Touch panel

Touch connector
USB
Oppervlakte hardheid
7H

Operation / Mechnical

Bedrijfstemperatuur
-10 ~ +60 (°C)
Relatieve luchtvochtigheid
10%-90%
Netto gewicht (kg)
4,86
Bruto gewicht (incl verpakking) (kg)
8,30
Materiaal behuizing
Rubber frame
Behuizing L x B x H
579.4 × 347.0 × 41.5
Uitsparing voor klemsteunen Lx H
639.0 × 381.0
Max. wanddikte voor klemsteunen (mm)
5.0 mm
Aantal klemmen nodig
7
Bevestiging
VESA 100

Power

Voedingsspanning
100-240V ACDC active switching; 12V DC-Out
Voltage (V)
8~18
Energie verbruik (W)
31
Stand-By Consumption (W)
<1

External connectors

Externe connectoren
8-18V DC-In , HDMI, USB 2.0 ports, UBS OTG, W-LAN antenna connector (RP-SMA male), Audio-In, Audio Out, Serial, SIM-card slot, SD-card slot

Expansion slots

Uitbreiding slot
MiniPCle

Inclusief bij levering

Inclusief in the delivery
Power Supply, Short Installation Manual, Bevestigings frame , W-LAN antenna (RP-SMA female)
