43" 4K Open Frame Capacitive Touch Monitor – High Brightness
Belangrijkste kenmerken
-
Schermformaat: 43 inch
-
Resolutie: 4K Ultra HD
-
Helderheid: 1000+ cd/m² (High Brightness)
-
Touchtechnologie: 10-point capacitive multi-touch
-
Bonding: Optisch gebonden touch- en LCD-paneel
-
Glasbehandeling: Anti-glare (chemisch geëtst)
-
Backlight: A+ LED-paneel met 100.000 uur levensduur
-
Audio: Geïntegreerde speakers (2x2W)
-
Aansluitingen: HDMI, DVI, VGA, USB-Touch, RS232, DC-In
-
Gebruik: 24/7 geschikt
-
Garantie: 2 jaar
43” 4K High Brightness Open Frame Touch Monitor voor professionele integratie

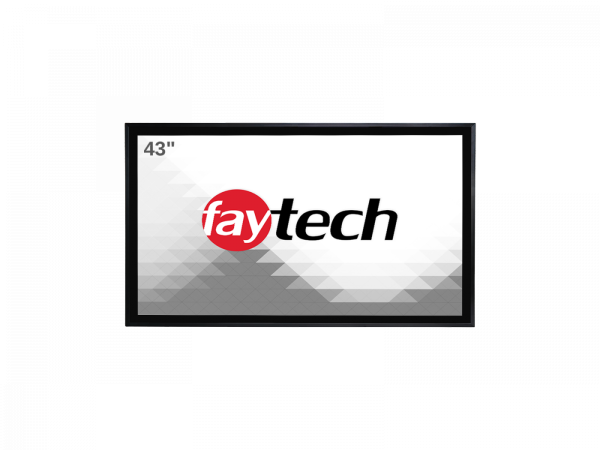

De faytech® 43" Open Frame Capacitive Touch Monitor (FT43HDKTMCAPHBOB) is een krachtige en professionele 4K touchscreen-oplossing voor industriële en commerciële toepassingen waar hoge helderheid, betrouwbaarheid en integratie centraal staan.
Met een 4K Ultra HD resolutie en een 1000+ cd/m² high brightness LCD-paneel biedt deze monitor uitzonderlijke beeldkwaliteit – zelfs in helder verlichte omgevingen. Dankzij het optisch gebonden touch- en LCD-paneel worden reflecties verminderd, de kijkhoek vergroot en de helderheidsbeleving versterkt.
De 10-punts Projected Capacitive multi-touch technologie zorgt voor een intuïtieve en nauwkeurige bediening. De monitor is uitgerust met anti-glare glas (chemisch geëtst) en een robuust A+ kwaliteit LED-backlight paneel met een levensduur tot 100.000 uur.
Het open frame ontwerp maakt dit model ideaal voor integratie in kiosken, zuilen, machines of maatwerkoplossingen.
Belangrijkste kenmerken
-
Schermformaat: 43 inch
-
Resolutie: 4K Ultra HD
-
Helderheid: 1000+ cd/m² (High Brightness)
-
Touchtechnologie: 10-point capacitive multi-touch
-
Bonding: Optisch gebonden touch- en LCD-paneel
-
Glasbehandeling: Anti-glare (chemisch geëtst)
-
Backlight: A+ LED-paneel met 100.000 uur levensduur
-
Audio: Geïntegreerde speakers (2x2W)
-
Aansluitingen: HDMI, DVI, VGA, USB-Touch, RS232, DC-In
-
Gebruik: 24/7 geschikt
-
Garantie: 2 jaar
Ideaal voor toepassingen zoals:
-
Digital signage
-
Interactieve kiosken
-
Retail & shopping malls
-
Meeting rooms & classrooms
-
Industriële automatisering
-
Hotels & hospitality
Product Details
- SKU
- 1010502061
- Productcode
- FT43TMCAPHBOB
- Levertijd
- Op aanvraag
- Manufacturer
- faytech
- Art Grp
- MO
Product informatie
- Productnaam
- 43″ Open Frame Capacitive Touch Monitor (4K)
- EAN nummer
- 6920734043124
- Kleur
- Zwart
Display
- Display size
- 43" / 109 cm
- Beeldscherm ratio
- 16:9
- Resolutie
- 1920 x 1080
- Active Area [mm]
- 162.05 × 121.54
- Helderheid (cd/m²)
- 1000+
- Contrast Ratio
- 800:1
- LED life time [h]
- 100,000
- Viewing Angle [°]
- 170 / 170
- Display interface
- LVDS
PC/Monitor system
- Monitor Controller
- Realtek® RTD2556T
- Monitor Firmware
- Standard
- Loudspeaker
- 2× 2W
- HDMI
- 1
- DP
- 1
- Audio In
- 1
- USB-B (touch)
- 1
- Serial Port RS232 (RX / TX only)
- 1
- Adjustable Features
- Auto Adjust
Touch panel
- Touch Type
- Projected Capacitive 10-point Multi-touch
- Printing type touch panel
- Organic
- Cover Glass Surface Treatment
- AG
- IK Protection
- IK07
- Printing Color
- RAL9004 (Black)
- Touch controller
- EXC81W60
- Touch Interface
- USB
- Touch Resolution RX
- 96
- Touch Resolution TX
- 54
- Optical Bonding
- Clear Bond®
Environmental conditions
- operation temperature
- -10°C to 60°C
- Storage Temperature
- 20°C to 70°C
- Humidity Range (RH)
- 10% to 90%
Certifications
- CE certificatie
- yes
- FCC Certificatie
- yes
Chassis
- Case Design
- SS-IP65
- Case size
- Large
- IP Protection
- Full IP65
- Case Color
- Silver
- Case Coating
- Powder Coating
- 201.0 × 160.5 × 40.7
- 272.8 × 214.4 × 62.7
- Cut-out for clamp supports L × H [mm]
- 231.0 × 190.0
- Max. wall thickness for clamp supports [mm]
- N/A
- Amount of clamps required
- N/A
- Mounting
- VESA 100 × 100
Accessories
- USB-Touch Cable
- Yes
- Short instruction manual
- Yes
Power
- Voltage (V)
- 9-36V
- Stand-By Consumption (W)
- <1.2W
Weight and Packaging
- Net weight
- ~1.70 kg est
- Gross Weight
- ~2.00 kg est. (incl. Cartonage)
- Packaging Material
- 100% recyclable cardboard and polyethylene (PE)
- Packaging Size L × W × H [mm]
- 355.0 × 280.0 × 80.0
