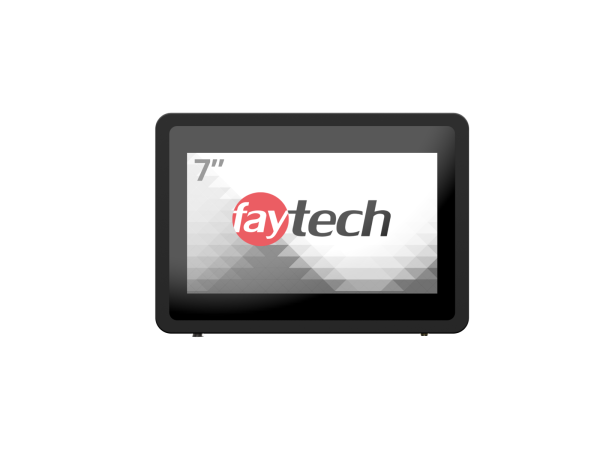

7" Capacitive ARM Touch PC (S905D3)| FT07S905D3BACAPOB

7" Capacitive ARM Touch PC (S905D3)
4010077717

Producer-No.: FT07S905D3BACAPOB
EAN: 6920734000685
  • Amlogic S905D3 Quad-Core Cortex A-53
  • 2GB RAM memory, 64GB eMMC 5.1
  • Supports Android 9, Debian 12, Linux (32Bit, 64Bit)
  • AI Support (NPU 1.2Tops)
  • Anti-glare surface treatment (chemical etching)
  • 10-Finger-Multi Touch Capacitive Touch Panel
  • 1.1mm cover glass with 7H surface hardness
  • Optically bonded Touch Panel to LCD Panel
  • Patented IP65 front with silicon seal
  • Integrated W-LAN
  • 2 year guarantee

Datasheet

3 - 5 werkdagen

7" Capacitive ARM Touch PC – S905D3

De 7" capacitive ARM Touch PC van faytech is ontworpen voor energie-efficiënte en betrouwbare prestaties in toepassingen waar laag stroomverbruik en minimale warmteontwikkeling cruciaal zijn. Dit ventilatorloze systeem is uitgerust met de S905D3-processor, een efficiënte quad-core oplossing die het vorige V40-model vervangt en geoptimaliseerd is voor multimedia en basistaken op het gebied van AI.

Met een 1,2 TOPS NPU biedt de S905D3 AI-mogelijkheden voor interactieve toepassingen en geoptimaliseerde videoverwerking. Dit maakt het apparaat ideaal voor kostengevoelige toepassingen zoals interactieve kiosks, retailinformatiepunten en digital signage in winkelcentra, luchthavens en musea. De krachtige GPU ondersteunt het afspelen van hoge-resolutie video’s en zorgt voor een soepele gebruikerservaring.

De 7" Touch PC is beschikbaar in Premium en Basic I/O versies en beschikt over een optisch gelijmd capacitief aanraakpaneel voor verbeterde stabiliteit, duurzaamheid en zichtbaarheid. Dankzij flexibele montageopties is hij eenvoudig te integreren in diverse omgevingen. Standaard wordt het systeem geleverd met Android 9, met optionele ondersteuning voor Android 11 of Linux-distributies zoals Debian en Ubuntu.

Of het nu gaat om self-service oplossingen, AI-gestuurde toepassingen of informatiezuilen, deze compacte en veelzijdige Touch PC biedt een betrouwbare en efficiënte oplossing voor uiteenlopende industrieën.

Algemeen

SKU
4010077717
Levertijd
3 - 5 werkdagen
Manufacturer
faytech
Art Grp
PC

Labels

New Label
New

Product details touch computer

Productnaam
7" Capacitive ARM Touch PC (S905D3)
Productcode
FT07S905D3BACAPOB
EAN nummer
6920734000685

Display

Display size
7" / 17.78 cm
Beeldscherm ratio
16:9
Resolutie
1024 x 600
Helderheid (cd/m²)
500 cd/m₂
Contrast Ratio
800:1
Backlight / Backlight lifetime
20000
Kijkhoek horizontaal / verticaal (°)
160 / 130
Display interface
LVDS

PC S905D3

Processor
Amlogic S905D3
Chipset
Quad-Core Cortex A-53
Pre installed OS
Android 9
OS Available on Request (additional fee)
Linux Ubuntu 22.4, Debian 11 & 12
RAM Size
2 GB LPDDR4
EMMC Size
64 GB eMMC 5.1
GPU
Mali G31 MP2
NPU
1.2Tops
Loudspeaker
2× 2W
Wifi
RTL8821 + Bluetooth 4.0
HDMI
1
SD Card Slot
1
Audio In / Out
1 (MAX98090 audio chip)
USB 2.0
1
USB OTG
1
Ethernet Network (10/100/1000 Mbit/s)
1
Serial Port RS232 (RX / TX only)
1

Touch Panel

Touch Type
Projected Capacitive 10-point Multi-touch
Printing type touch panel
Organic
Cover Glass Surface Treatment
AG
IK Protection
IK07
Printing Color
RAL9004 (Black)
strengthening
Thermally Strengthened
Touch controller
EXC81W60
Touch Interface
USB
Touch Resolution RX
28
Touch Resolution TX
16
Optical Bonding
Clear Bond®

Environmental conditions

operation temperature
-10°C to 60°C
Storage Temperature
-20°C to 60°C
Humidity Range (RH)
10% to 90%

Certifications

CE certificatie
yes
FCC Certificatie
yes

Chassis

Case Design
Rubber Frame Sealing
Case size
Small
IP Protection
IP65 Front / IP40 Back
Case Color
RAL9004 (Black)
Case Coating
Powder Coating
Materiaal buitenkant
Aluminium
201.0 × 160.5 × 40.7
195.6 × 137.6 × 43.2
Cut-out for clamp supports L × H [mm]
N/A
Max. wall thickness for clamp supports [mm]
N/A
Amount of clamps required
N/A
Mounting
VESA 100 × 100

Power

Power Indicator
Green LED
Voltage (V)
12V
Power Consumption
8.3W

Accessories S905D3

Voedingsspanning
100-240V ACDC active switching; 12V DC-Out
Wifi Antenna
RP-SMA female
Short instruction manual
Yes

Weight and packaging

Net weight
~1.70 kg est
Gross Weight
~2.00 kg est. (incl. Cartonage)
Packaging Material
100% recyclable cardboard and polyethylene (PE)
Packaging Size L × W × H [mm]
355.0 × 280.0 × 80.0
