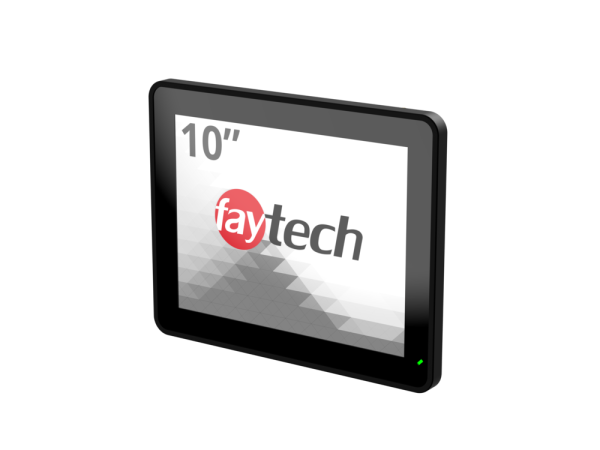

FT10BA311DPRCAPOB 10" ARM Capacitive touch PC (A311D)
FT10BA311DPRCAPOB 10" ARM Capacitive touch PC (A311D)
- Amlogic A311D Quad-Core Cortex-A73 + Dual-core Cortex-A53
- 4GB RAM memory, 64GB eMMC 5.1
- Supports Android 9, Debian 12, Linux (32Bit, 64Bit)
- AI Support (NPU 5.0Tops)
- Anti-glare surface treatment (chemical etching)
- 10-Finger-Multi Touch Capacitive Touch Panel
- 1.1mm cover glass with 7H surface hardness
- Optically bonded Touch Panel to LCD Panel
- Patented IP65 front with silicon seal
- Integrated W-LAN
- 2 year guarantee
3 - 5 werkdagen
Algemeen
- SKU
- 1010502720
- Levertijd
- 3 - 5 werkdagen
- Manufacturer
- faytech
- Art Grp
- PC
Product details touch computer
- Productnaam
- 10" ARM Capacitive touch PC (A311D)
- Productcode
- FT10BA311DPRCAPOB
- EAN nummer
- 6920734001491
Display
- Display size
- 9.7 "/ 24.65 cm
- Beeldscherm ratio
- 4:3
- Resolutie
- 1024 x 768
- Helderheid (cd/m²)
- 300 cd/m₂
- Contrast Ratio
- 800:1
- Backlight / Backlight lifetime
- 20000
- Kijkhoek horizontaal / verticaal (°)
- 170 / 170
- Display interface
- LVDS
PC A311D
- Processor
- Amlogic A311D
- Chipset
- Quad-Core Cortex-A73 + Dual-core Cortex-A53
- Pre installed OS
- Android 9
- OS Available on Request (additional fee)
- Linux Ubuntu 22.4, Debian 12 *
- RAM Size
- 4GB LPDDR4
- EMMC Size
- 64 GB eMMC 5.1
- GPU
- Mali G52 MP4
- NPU
- 5.0Tops
- Loudspeaker
- 2× 2W
- Wifi
- RTL8821 + Bluetooth 4.0
- HDMI
- 1
- SD Card Slot
- 1
- Audio In / Out
- 1 (MAX98090 audio chip)
- USB 2.0
- 4
- USB OTG
- 1
- Ethernet Network (10/100/1000 Mbit/s)
- 1
- Serial Port RS232 (RX / TX only)
- 1
Touch Panel
- Touch Type
- Projected Capacitive 10-point Multi-touch
- Printing type touch panel
- Organic
- Cover Glass Surface Treatment
- AG
- IK Protection
- IK07
- Printing Color
- RAL9004 (Black)
- strengthening
- Thermally Strengthened
- Touch controller
- EXC81W60
- Touch Interface
- USB
- Touch Resolution RX
- 36
- Touch Resolution TX
- 27
- Optical Bonding
- Clear Bond®
Environmental conditions
- operation temperature
- -10°C to 60°C
- Storage Temperature
- -20°C to 60°C
- Humidity Range (RH)
- 10% to 90%
Certifications
- CE certificatie
- yes
- FCC Certificatie
- yes
Chassis
- Case Design
- Rubber Frame Sealing
- Case size
- Small
- IP Protection
- IP65 Front / IP40 Back
- Case Color
- RAL9004 (Black)
- Case Coating
- Powder Coating
- Materiaal buitenkant
- Aluminium
- 201.0 × 160.5 × 40.7
- 244.9 × 195.8 × 44.0
- Cut-out for clamp supports L × H [mm]
- 231.0 × 190.0
- Max. wall thickness for clamp supports [mm]
- 5.0
- Amount of clamps required
- 4
- Mounting
- VESA 100 × 100
Power
- Power Indicator
- Green LED
- Voltage (V)
- 9-36V
- Power Consumption
- 8.7W
Accessories A311D
- Voedingsspanning
- 100-240V ACDC active switching; 12V DC-Out
- Wifi Antenna
- RP-SMA female
- Short instruction manual
- Yes
Weight and packaging
- Net weight
- ~1.70 kg est
- Gross Weight
- ~2.00 kg est. (incl. Cartonage)
- Packaging Material
- 100% recyclable cardboard and polyethylene (PE)
- Packaging Size L × W × H [mm]
- 355.0 × 280.0 × 80.0
