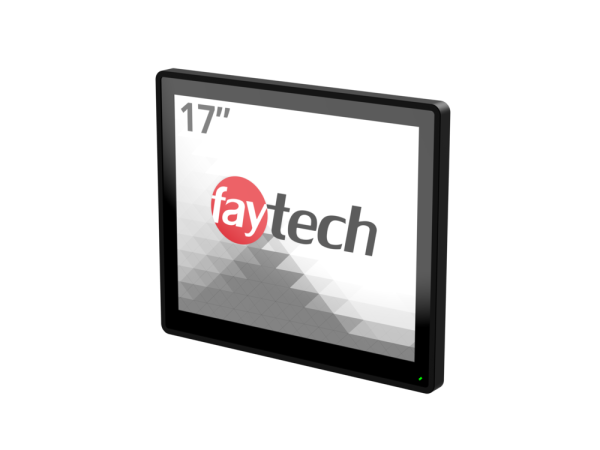

FT17BA311DPRCAPOB 17" ARM Capacitive touch PC (A311D)

17" Capacitive ARM Touch PC (A311D)

FT17BA311DPRCAPOB

  • Amlogic A311D Quad-Core Cortex-A73 + Dual-core Cortex-A53
  • 4GB RAM memory, 64GB eMMC 5.1
  • Supports Android 9, Debian 12, Linux (32Bit, 64Bit)
  • AI Support (NPU 5.0Tops)
  • Anti-glare surface treatment (chemical etching)
  • 10-Finger-Multi Touch Capacitive Touch Panel
  • 1.1mm cover glass with 7H surface hardness
  • Optically bonded Touch Panel to LCD Panel
  • Patented IP65 front with silicon seal
  • Integrated W-LAN
  • 2 year guarantee



Datasheet

3 - 5 werkdagen

Algemeen

SKU
1010502725
Levertijd
3 - 5 werkdagen
Manufacturer
faytech
Art Grp
PC

Product details touch computer

Productnaam
17" Capacitive ARM Touch PC (A311D)
Productcode
FT17BA311DPRCAPOB
EAN nummer
6920734001576

Display

Display size
17" / 43.18 cm
Beeldscherm ratio
5:4
Resolutie
1280 x 1024
Helderheid (cd/m²)
250 cd/m₂
Contrast Ratio
1000:1
Backlight / Backlight lifetime
30000
Kijkhoek horizontaal / verticaal (°)
170 / 160
Display interface
LVDS

PC A311D

Processor
Amlogic A311D
Chipset
Quad-Core Cortex-A73 + Dual-core Cortex-A53
Pre installed OS
Android 9
OS Available on Request (additional fee)
Linux Ubuntu 22.4, Debian 11 & 12
RAM Size
4GB LPDDR4
EMMC Size
64 GB eMMC 5.1
GPU
Mali G52 MP4
NPU
1.2Tops
Loudspeaker
2× 2W
Wifi
RTL8821 + Bluetooth 4.0
HDMI
1
SD Card Slot
1
Audio In / Out
1 (MAX98090 audio chip)
USB 2.0
1
USB OTG
1
Ethernet Network (10/100/1000 Mbit/s)
1
Serial Port RS232 (RX / TX only)
1
Serial Port RS485 (Pin A (+) / Pin B (-))
1

Touch Panel

Touch Type
Projected Capacitive 10-point Multi-touch
Printing type touch panel
Organic
Cover Glass Surface Treatment
AG
IK Protection
IK07
Printing Color
RAL9004 (Black)
strengthening
Thermally Strengthened
Touch controller
EXC81W84
Touch Interface
USB
Touch Resolution RX
52
Touch Resolution TX
42
Optical Bonding
Clear Bond®

Environmental conditions

operation temperature
-10°C to 60°C
Storage Temperature
-20°C to 60°C
Humidity Range (RH)
10% to 90%

Certifications

CE certificatie
yes
FCC Certificatie
yes

Chassis

Case Design
Rubber Frame Sealing
Case size
Large
IP Protection
IP65 Front / IP40 Back
Case Color
RAL9004 (Black)
Case Coating
Powder Coating
Materiaal buitenkant
Aluminium
201.0 × 160.5 × 40.7
393.0 × 333.0 × 54.0
Cut-out for clamp supports L × H [mm]
369.0 × 309.0
Max. wall thickness for clamp supports [mm]
5.0
Amount of clamps required
6
Mounting
VESA 100 × 100

Power

Power Indicator
Green LED
Voltage (V)
9-36V
Power Consumption
12.5W

Accessories A311D

Voedingsspanning
100-240V ACDC active switching; 12V DC-Out
Wifi Antenna
RP-SMA female
Short instruction manual
Yes

Weight and packaging

Net weight
~4.10 kg est.
Gross Weight
~6.00 kg est. (incl. Cartonage)
Packaging Material
100% recyclable cardboard and polyethylene (PE)
Packaging Size L × W × H [mm]
545.0 × 410.0 × 80.0
